Organization and variables

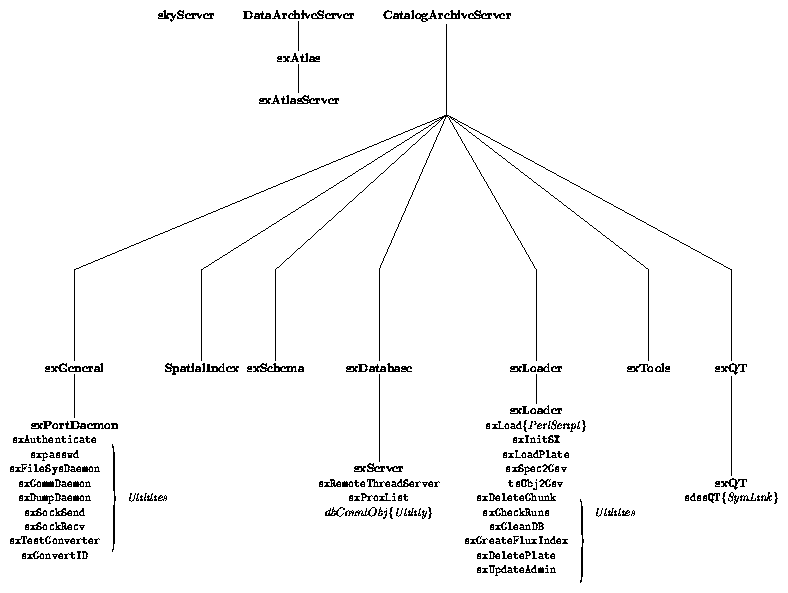

The Science Archive Source Code Tree:

$\epsfig{file=EDRchart.eps,width=17cm}$

Libraries:

sxGeneral --> libsxGeneral.a

SpatialIndex --> libSpatialIndex.a

sxSchema --> libsxSchema.a

sxDatabase --> libsxDatabase.a

--> libsxIndex.a

sxLoader --> libsxLoader.a

sxAtlas --> libsxAtlas.a

--> libsxAtlasSchema.a

sxTools --> libsxTools.a

--> libsxToolsFits.a

CVS subdirectories within each module:

bin/ executables

app/ executables & utilities

src/ library source files

lib/ library .a files

etc/ misc. or config files

doc/ documentation

doc/www/ online doc files

CVS/ CVS files

include/ .h files

cgi-bin/ cgi scripts

The .sxrc file (see also next table):

# SX environment variables and aliases
#########################
# set sxdb version
if ( $SX == "edr " ) then
setenv SX_DIR /d001/sx
setenv OO_FD_PATH /d001/edr
setenv OO_FD_NUMBER 1001
else if ( $SX == "atlas" ) then
setenv SX_DIR /d001/sx
setenv OO_FD_PATH /d001/sx/atlasDB
setenv OO_FD_NUMBER 9900
else if ( $SX == "test" ) then
setenv SX_DIR /d001/test
# setenv OO_FD_PATH /d001/staging/testDB
# setenv OO_FD_NUMBER 9903
setenv OO_FD_NUMBER 2732
setenv OO_FD_PATH /d001/testing/edr
endif
#
# set the environment variables
#
setenv OBJECTIVITY_DIR /home/object/linux86
setenv LD_LIBRARY_PATH $OBJECTIVITY_DIR/lib:/usr/local/lib
setenv XAPPLRESDIR $OBJECTIVITY_DIR/etc/app-defaults
setenv PYTHONPATH /d001/sx/sxCL
alias sxCL 'python -c "import sxCL; sxCL.main()"'
setenv OO_FD_BOOT $OO_FD_PATH/SXDB
setenv SX_CLIENT_DIR $SX_DIR/etc
setenv SX_PASSWD_DIR ~/sxpasswd
setenv DERVISH_DIR $SX_DIR/dervish
setenv CFITSIO_DIR $SX_DIR/cfitsio
setenv LIBFITS_DIR $SX_DIR/libfits
setenv LIBPNG_DIR $SX_DIR/libpng
setenv PHOTOSCH_DIR $SX_DIR/photoSch
setenv SXGENERAL_DIR $SX_DIR/sxGeneral
setenv SXLOADER_DIR $SX_DIR/sxLoader
setenv SXDATABASE_DIR $SX_DIR/sxDatabase
setenv SXSCHEMA_DIR $SX_DIR/sxSchema
setenv SXATLAS_DIR $SX_DIR/sxAtlas
setenv SXGUI_DIR $SX_DIR/sxQT
setenv SXQT_DIR $SX_DIR/sxQT
setenv SX_PORTDAEMON_PORT 2005
setenv SX_PORTDAEMON_HOST wiglaf.roe.ac.uk
setenv SX_FSDAEMONLOG_DIR $SX_DIR/etc
setenv SPATIALINDEX_DIR $SX_DIR/SpatialIndex
setenv OO_LOCKSERVER_HOST wiglaf
# setenv SDSS_RUNS /data1/sx
setenv PATH $OBJECTIVITY_DIR/bin:$OBJECTIVITY_DIR/lib:
$SXGENERAL_DIR/bin:$PATH
setenv OO_RPC_TIMEOUT 1000
#
# make links to the proper sxbuild and sxmake versions
#
/bin/rm -f ~/bin/sxbuild ~/bin/sxmake
ln -s $SXGENERAL_DIR/bin/sxbuild ~/bin
ln -s $SXGENERAL_DIR/bin/sxmake ~/bin
#
# set some aliases
#
alias cdoo 'cd $OO_FD_PATH'
alias ootool 'cdoo; ootoolmgr&'
alias cdqt 'cd $SXQT_DIR'
alias cdsx 'cd $SXDATABASE_DIR'
alias cdd 'cd $SXDATABASE_DIR'
alias cdg 'cd $SXGENERAL_DIR'
alias cdl 'cd $SXLOADER_DIR'
alias cdp 'cd $SPATIALINDEX_DIR'
alias cds 'cd $SXSCHEMA_DIR'
alias cdlog 'cd $SX_CLIENT_DIR/log'
alias psx 'ps -ef | grep sx'
alias sxm 'sxmake -debug -terse -filter'
alias sake 'sxmake -debug -terse -filter'
alias sxa 'cd ../src; sake all; cd ../app; sake '
alias sxs 'cdsx; sake lib; cd app; sake sxServer'
alias sxr 'cdsx; sake lib; cd app; sake sxRemoteThreadServer'
alias sxruns 'rm -f $SX_CLIENT_DIR/log/dbglog;
rm -f $SX_CLIENT_DIR/log/sess?.log;
rm -f $SX_CLIENT_DIR/log/sess??.log;
./sxServer -d \!* >& $SX_CLIENT_DIR/log/dbglog &'
alias sxrunr 'rm -f $SX_CLIENT_DIR/log/dbgrts;
./sxRemoteThreadServer -d \!* >& $SX_CLIENT_DIR/log/dbgrts &'
alias sxrunt 'rm -f dbgtst; ./sxTestServer -d \!* -c ./config >& dbgtst &'

Environment variables (set by your .sxrc file):

$SX picks which server you want to run (e.g. edr)

$SX_DIR $\rightarrow$ /$SX or wherever you have the source (e.g. /d001/sx/)

$SXGENERAL_DIR $\rightarrow$ $SX_DIR/sxGeneral

$SPATIALINDEX_DIR $\rightarrow$ $SX_DIR/SpatialIndex

$SXSCHEMA_DIR $\rightarrow$ $SX_DIR/sxSchema

$SXDATABASE_DIR $\rightarrow$ $SX_DIR/sxDatabase

$SXLOADER_DIR $\rightarrow$ $SX_DIR/sxLoader

$SXATLAS_DIR $\rightarrow$ $SX_DIR/sxAtlas

$SXPHOTOSCH_DIR $\rightarrow$ $SX_DIR/photoSch

$SXQT_DIR same as $SXGUI_DIR $\rightarrow$ $SX_DIR/sxQT

$SX_CLIENT_DIR $\rightarrow$ $SX_DIR/etc config and log files for sx server, and .pid files

$SX_PORTDAEMON_PORT port that portdaemon will come up on (e.g. 2005)

$SX_PORTDAEMON_HOST host that portdaemon is running on (e.g. wiglaf.roe.ac.uk)

$SX_PASSWD_DIR where .passwd files are kept for SX (e.g. $\sim$ /sxpasswd/)

$OO_FD_PATH Objectivity federation path (e.g. /d001/edr/)

$OO_FD_BOOT $\rightarrow$ $OO_FD_PATH/SXDB federation boot file

$OO_FD_NUMBER unique number assoc. with each federation

$OO_LOCKSERVER_HOST host of the lockserver (e.g. wiglaf)

$OO_RPC_TIMEOUT connection timeout (e.g. 1000s)

$DERVISH_DIR $\rightarrow$ $SX_DIR/dervish Dervish (Shiva) library directory

$CFITSIO_DIR $\rightarrow$ $SX_DIR/cfitsio FitsIO library directory

$LIBFITS_DIR $\rightarrow$ $SX_DIR/libfits Fits library directory

$LIBPNG_DIR $\rightarrow$ $SX_DIR/libpng PNG format library directory

$PYTHONPATH $\rightarrow$ $SX_DIR/sxCL Python library path

$OBJECTIVITY_DIR $\rightarrow$ /home/object/linux86 Objectivity directory

$LD_LIBRARY_PATH $OBJECTIVITY_DIR/lib:/usr/local/lib

The Port Daemon and SX_PASSWD_DIR:

A separate Port Daemon (sxPortDaemon) must be run for each password directory used, thus there is a one-one association between the Port Daemon and the password directory pointed to by the environment variable SX_PASSWD_DIR. At a site that runs more than one Catalog Archive Server (e.g., one for the EDR and one for the collaboration), separate password files will have to be maintained for the public and private servers, hence more than one port daemon will have to be run. Each port daemon must be associated with its own password directory via the SX_PASSWD_DIR variable, and it will write its log output (portDaemon.log file) also to this directory. The password directory for the port daemon is analogous to the client directory for the server. There is also a hostname and port-number associated with a given port daemon via the SX_PORTDAEMON_HOST and SX_PORTDAEMON_PORT environment variables.

The `config` file for each Catalog Archive Server:

The config file in the client directory stores the configuration parameters for the server association with that client directory. A sample config file is listed below.

nAgents 50 number of agents (contexts)

maxFDsPerContext 20 maximal federated databases p. context

minCacheSize 50 2.2cm(.2,.8)}27cmCache parameter

maxCacheSize 250

nodeTimeFactor 300.0 2.2cm(.2,.8)}27cmNode parameter

nodeCostFactor 0.1

nodeSaveCost 1.0 3.2cm(.2,1.2)} 37cmQuery parameter

maxNodeCost 100.0

nodeSaveDir qn

maxBagSize 1150000

defBagSize 5000

stackBufSize 128

maxSessions 10 Number of users (depends on Objy license)

maxDB 0

splitDB 1

homeDir /d001/sx/etc

FDBootFileName /d001/edr Federated Database

portDaemonID sxROEMain 2.2cm(.2,.8)}27cmPort Daemon parameter

portDaemonPass serverPassword

firstUserPort 2500 2.2cm(.2,.8)}27cmPort parameter

lastUserPort 8899

useFluxIndex 0 not yet implemented

useSXPredicate 1 use always!
